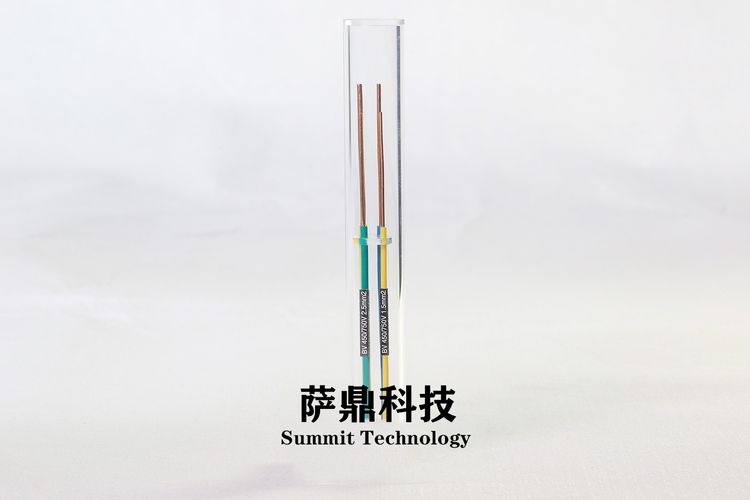

PVC Insulated Cable (Wire)

Product Name

PVC Insulated Cable (Wire)

PVC Insulated Cable (Wire)

Reference Standard

PVC Insulated Cable (Wire) is manufactured according to the standards of IEC 60227-2007 and JB/T8734-2012 or BS, DIN, and ICEA up on repuest.

Applications

PVC Insulated Cable (Wire) is suitable for power intallation, fix wiring or flexible connection for electrical appliances with related voltage of 450/750V and below.

Operating Characteristics

• Rated Voltage U0/U: 450/750V, 300/500V and 300/300V

• Max permissible Continuous Operating temperature of the conductor.
  60227 IEC 07 (BV-90) —— 90℃
  60227 IEC 08 (BV-90) —— 90℃
  60227 IEC 56 (BV-90) —— 90℃
  60227 IEC 57 (BV-90)—— 90℃
  For other types ————- 70℃

• The ambient temperature under installation shall not be below 0℃.

The bending radius of cable:

D ≤ 25mm ————- ≥ 4D
D ＞ 25mm ————- ≥ 6D
( Diameter of the cable )
