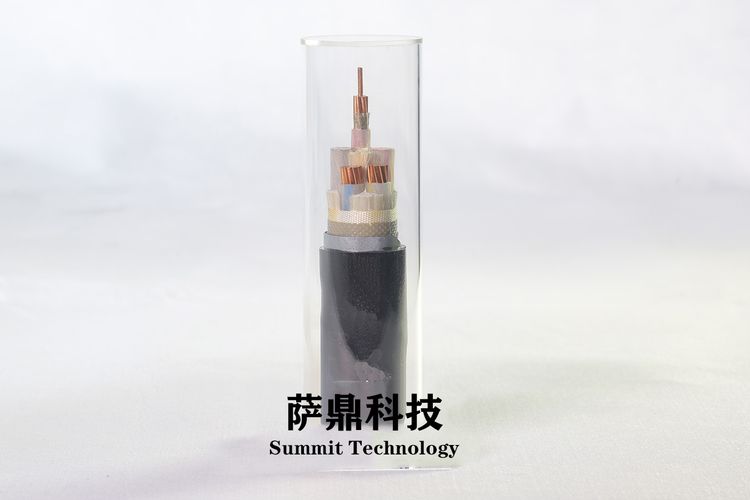

Rai Power Cable Rated Voltage up to and Including 10kV with Radiation Cross-linking

Reference Standard

The product is manufactured according to the standards of IEC60502-2:2014 or IEC, BS, DIN and ASTM upon request.

Applications

The product is suitable for indoors and ourdoors electric appliances with rated voltage up to and including 26/35kV

Type & Name

Type	Name
YJFV	Copper conductor radiation cross-linking insulated cross-linking sheated low-fume no-haglogen class A Fire-retardant cable.
YJFV22	Copper conductor radiation XLPE insulated PVC sheathed steel-tape armored power cable.
YJFV32	Copper conductor radiation XLPE insulated PVC sheathed fine-steel-wire armored power cable.
YJFY	Copper conductor radiation XLPE insulated polyolefine sheathed power cable.
YJFY23	Copper conductor radiation XLPE insulated steel tape armored poly sheathed power cable.
YJFY33	Copper conductor radiation XLPE insulated fine steel twire armored no-halogen low-fume poly sheated power cable.

Production Range of Cable

Type	Name of Cores	Rated Votage (kV)
		0.6/1	1.8/3	3.6/6, 8.7/10
		Nom, cross-sectional area (mm2）
YJFV YJFV22 YJFY32  YJFY YJFY23 YJFY33	1-5	1-800
YJFV YJFV22 YTFV22 YJFY32  YJFY YJFY23 YJFY33	1		6-1000	25-630
YJFV YJFV22 YJFY32  YJFY YJFY23 YJFY33	2		6-630	25-630
